AIRCRAFT CONFIGURATION
aND LOADING SPECIFICATIONS
B767-300ER
TECHNICAL SPECIFICATIONS
Explore the aircraft that powers Sunrise Air Cargo’s efficient and reliable air cargo operations. The Boeing 767-300ER freighter plays a key role within our fleet, offering an optimal combination of payload capacity, operational range, and fuel efficiency to meet today’s logistics demands.
These B767-300ER specifications enable the transportation of a wide variety of cargo, including perishables, pharmaceuticals, general freight, and time-sensitive shipments. Its wide-body design and advanced cargo configuration allow for efficient loading and unloading, helping reduce turnaround times and improve overall operational performance.
Designed for flexibility, the aircraft supports consistent routing across major trade lanes, particularly between North America, Latin America, and the Caribbean. These airplane allow Sunrise Air Cargo to deliver dependable service while adapting to changing market needs and cargo requirements.
Backed by proven engineering and high safety standards, our airplane specifications ensure every shipment is handled with precision, reliability, and efficiency from origin to destination.
MAXIMUM PAYLOAD
127,000 LBS (57,606 KG)
TOTAL VOLUME:
15,468 CU FT

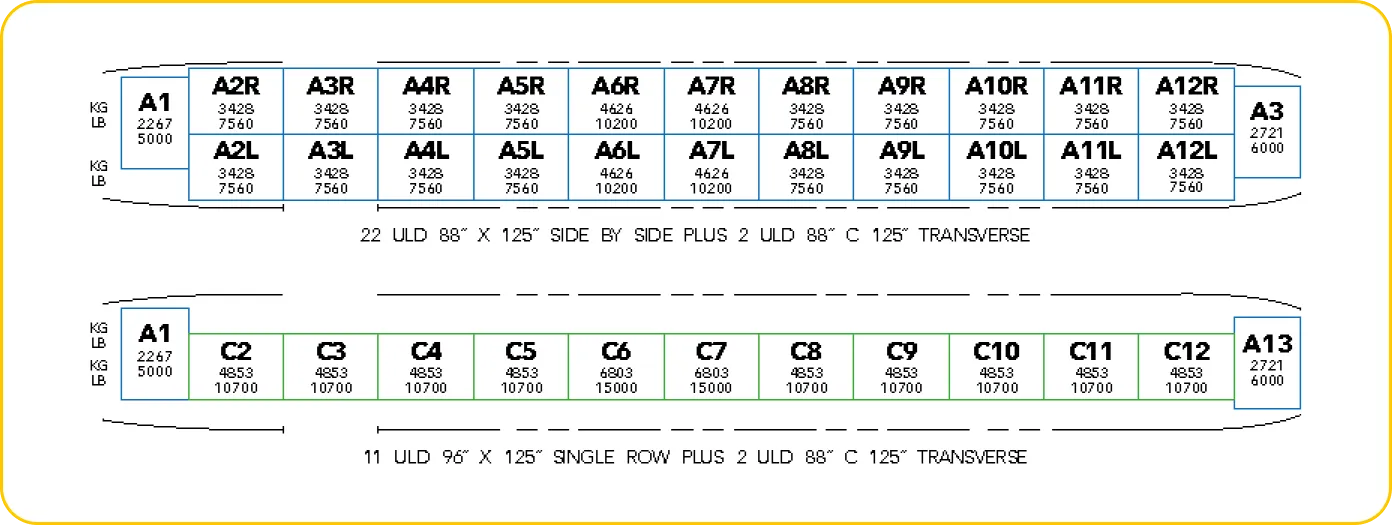

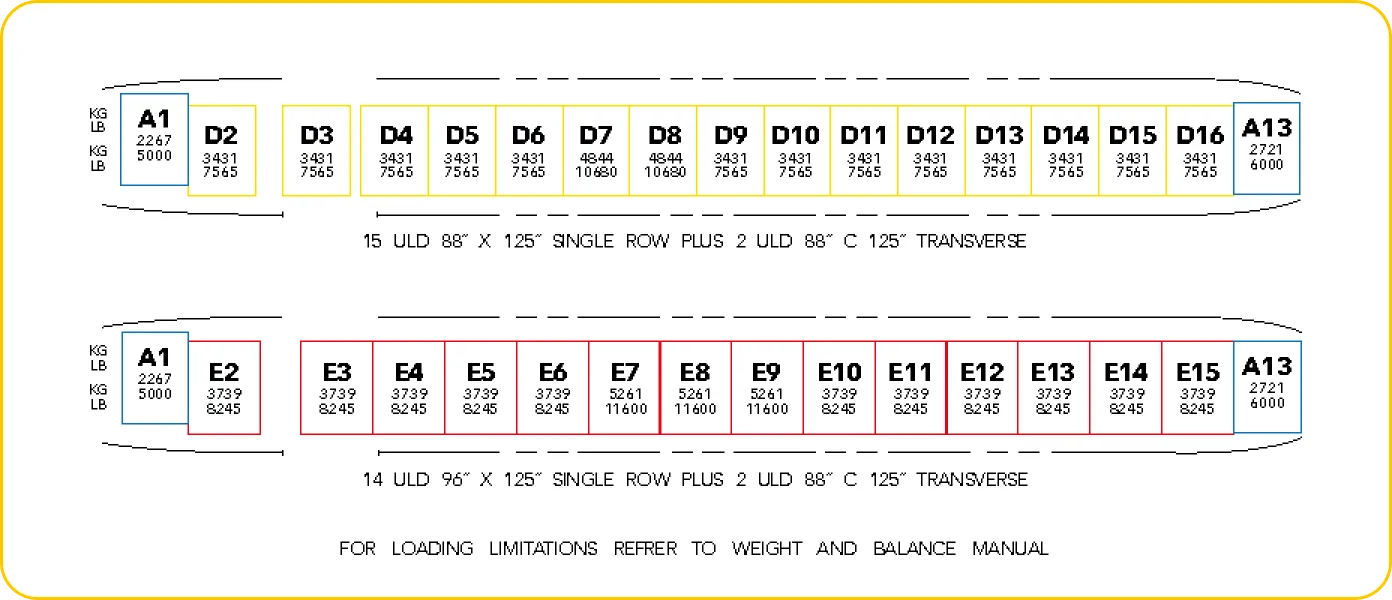

MAIN DECK:
11,900 CU FTT
CONTAINER POSITIONS: 24

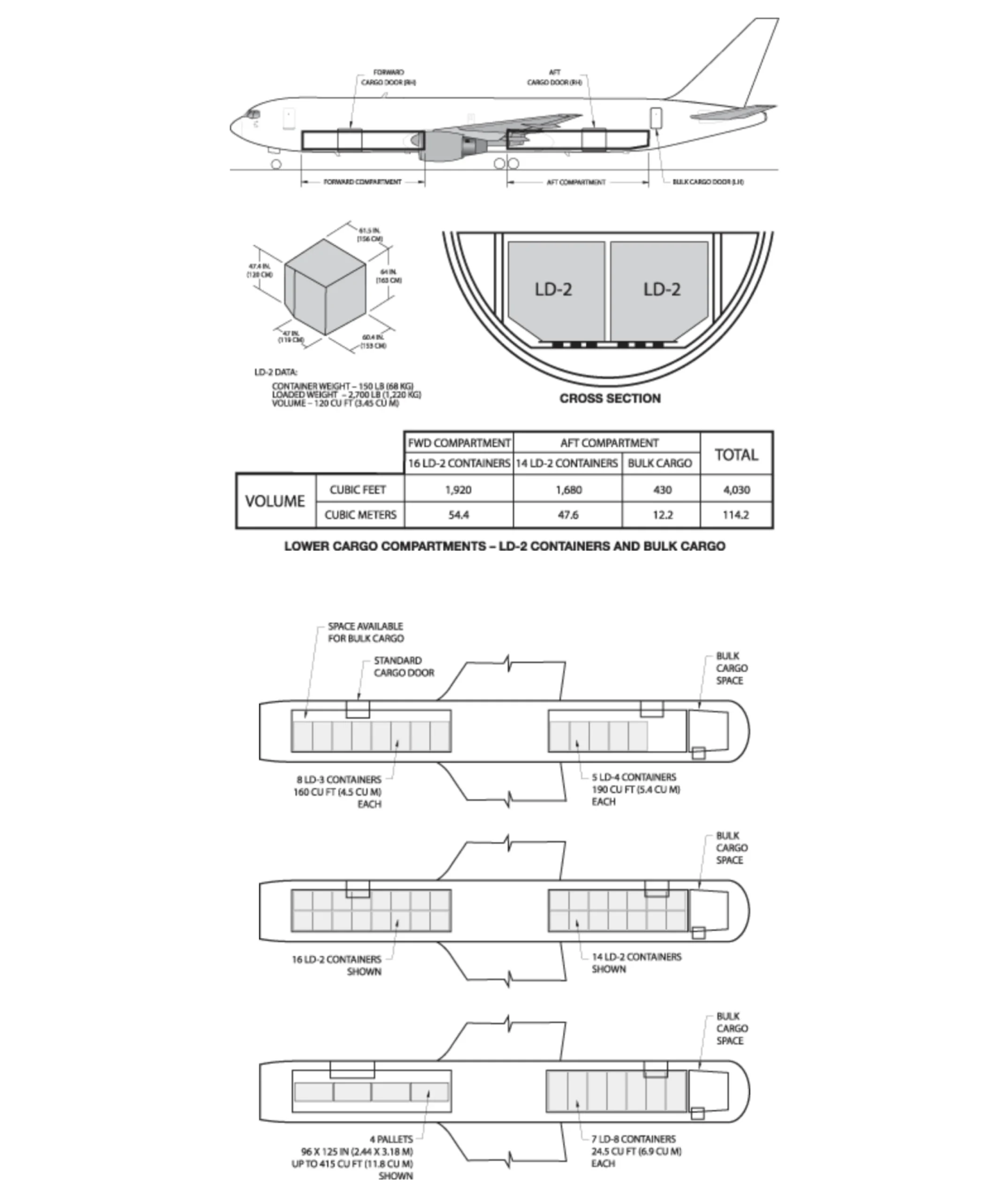

LOWER DECK:
3,568 CU FT
CONTAINER POSITIONS: 7
ENGINE MAXIMUM THRUST:
GENERAL ELECTRIC
CF6-80C2B6/B7
60,030 LBS (27,236 KG)
MAXIMUM FUEL CAPACITY:
159,706 LBS (72,441 KG)
MAXIMUM TAKEOFF WEIGHT:
412,000 LBS (186,880 KG)
MAXIMUM RANGE WITH MAX PAYLOAD:
3,500 NM (6,482 KM)
TYPICAL CRUISE SPEED
MACH 0.80
WINGSPAN:
156 FT 1 IN (47.58 M)
OVERALL LENGTH:
180 FT 3 IN (54.9 M)
TAIL HEIGHT:
52 FT (15.84 M)
